Universal_Tester_003 — kicad¶
Source repo: EmbeddedEra/Universal_Tester_003
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

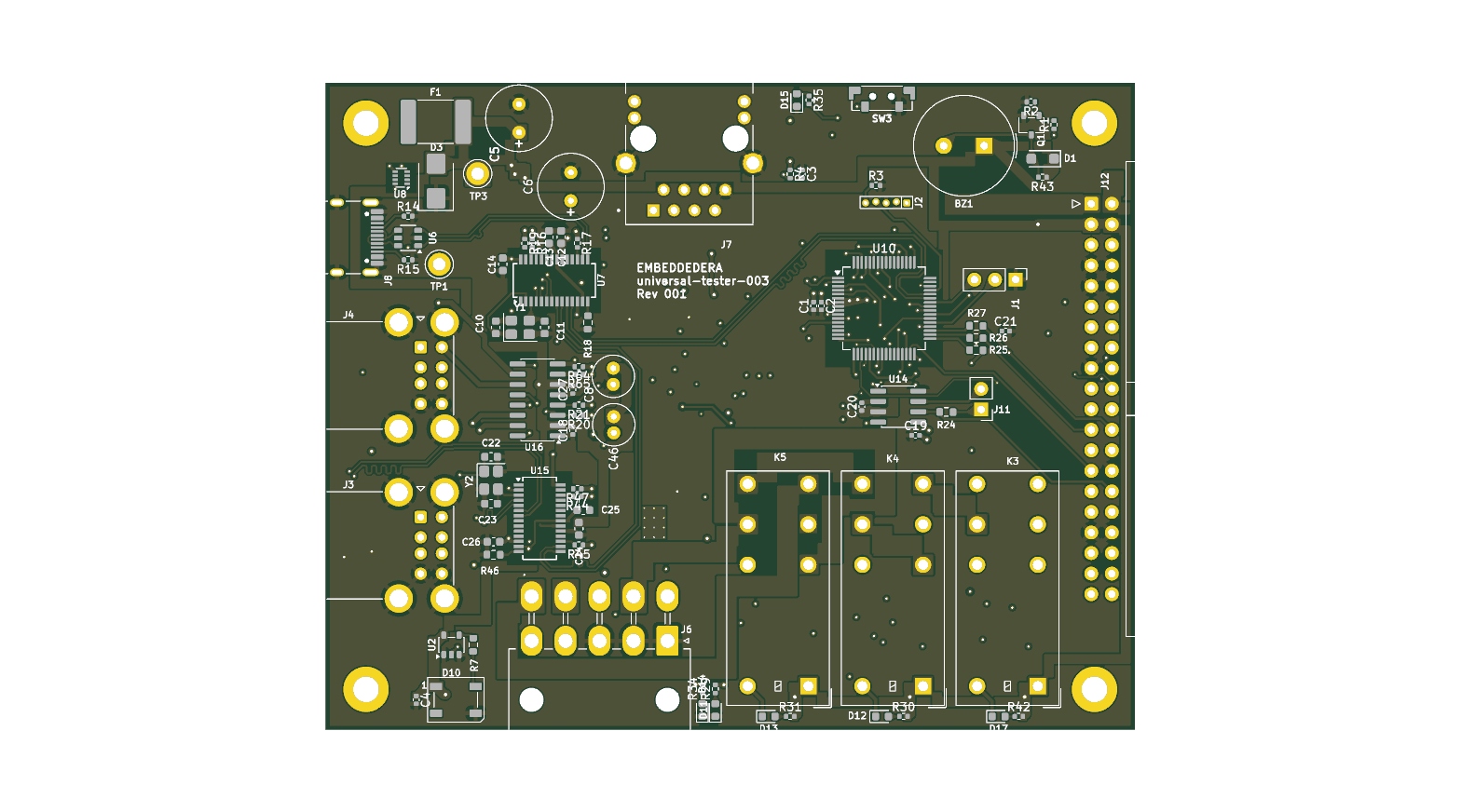

Top

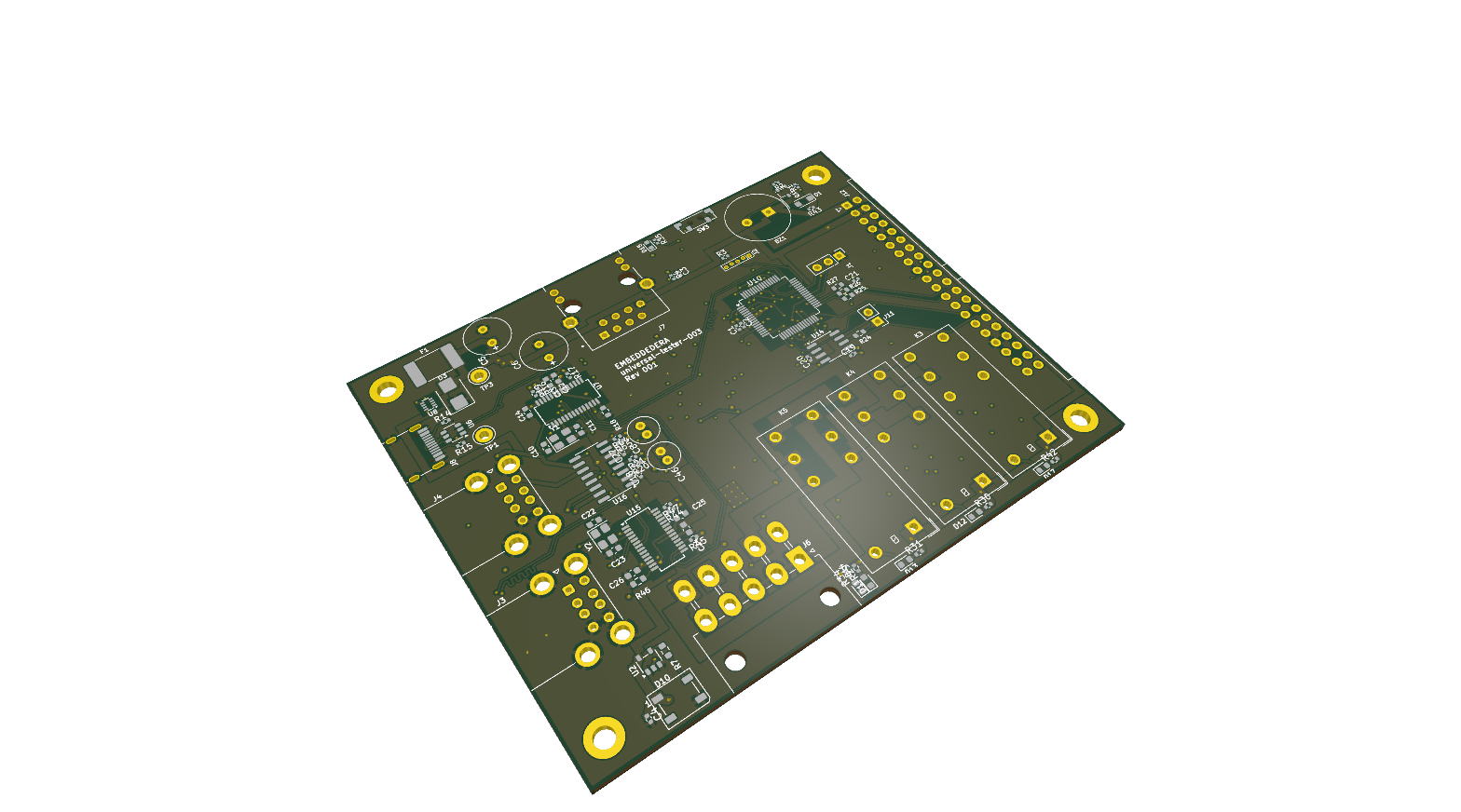

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:24
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| hardware/kicad/CAN_Interface.kicad_sch | 4 | 2 | 0 | 0 |
| hardware/kicad/Ethernet_Interface.kicad_sch | 4 | 3 | 0 | 0 |
| hardware/kicad/Fixture_Connector.kicad_sch | 3 | 27 | 0 | 0 |
| hardware/kicad/MCU_Core.kicad_sch | 3 | 44 | 0 | 0 |
| hardware/kicad/Power_System.kicad_sch | 4 | 4 | 0 | 0 |
| hardware/kicad/Relay_Routing.kicad_sch | 1 | 2 | 0 | 0 |
| hardware/kicad/USB_Subsystem.kicad_sch | 3 | 7 | 0 | 0 |
| hardware/kicad/universal-tester-003.kicad_sch | 0 | 2 | 70 | 417 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
