Universal_Tester — power-analog-board-001¶
Source repo: EmbeddedEra/Universal_Tester
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

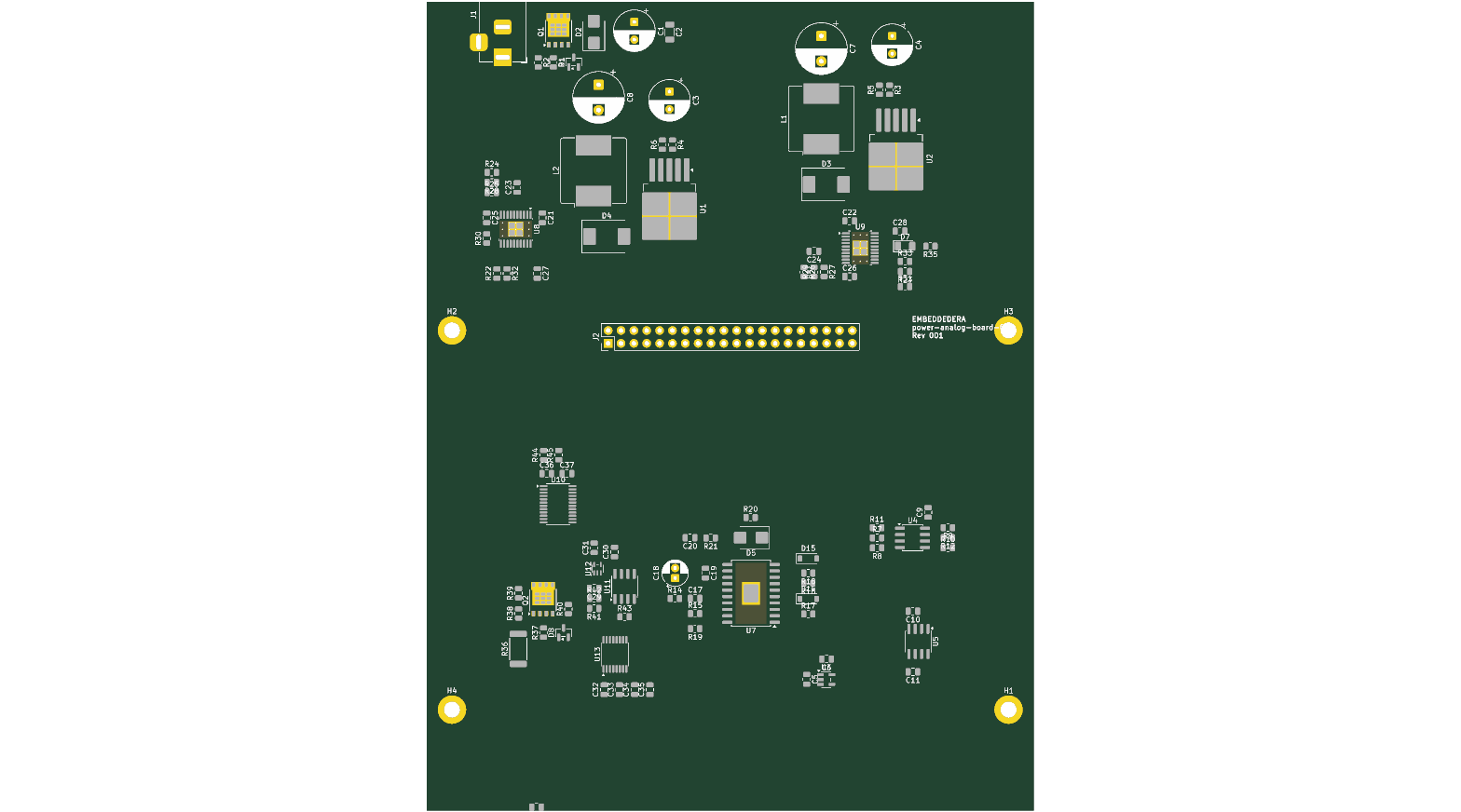

Top

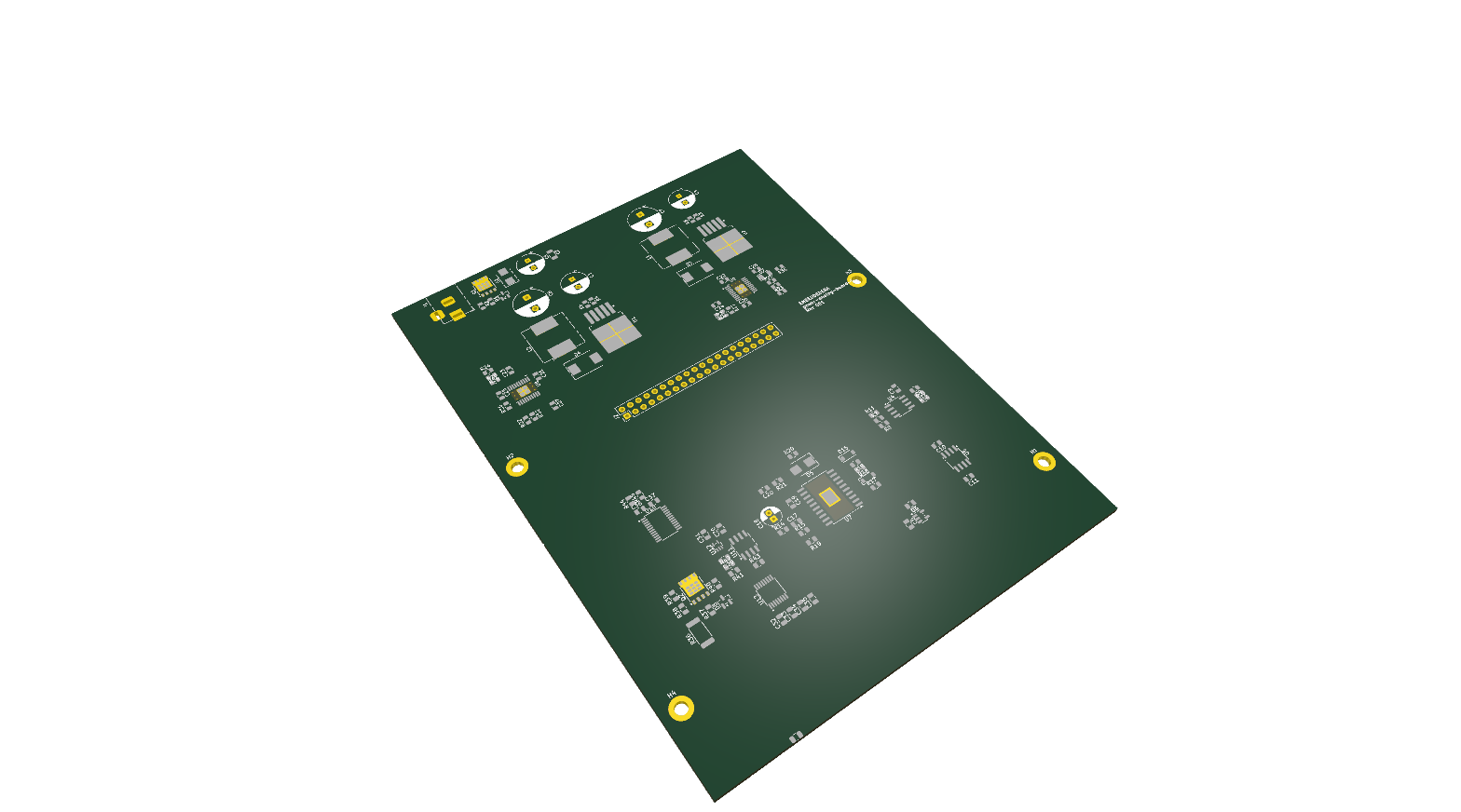

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:25
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| power-analog-board/power-analog-board-001/Board_Interconnect.kicad_sch | 1 | 17 | 0 | 0 |
| power-analog-board/power-analog-board-001/Fixed_Rails.kicad_sch | 4 | 2 | 0 | 0 |
| power-analog-board/power-analog-board-001/Measurement_AFE.kicad_sch | 10 | 5 | 0 | 0 |
| power-analog-board/power-analog-board-001/Power_Input.kicad_sch | 0 | 0 | 0 | 0 |
| power-analog-board/power-analog-board-001/Rail_Protection.kicad_sch | 5 | 2 | 0 | 0 |
| power-analog-board/power-analog-board-001/Status_LEDs_Power.kicad_sch | 3 | 7 | 0 | 0 |
| power-analog-board/power-analog-board-001/Variable_Rail.kicad_sch | 7 | 6 | 0 | 0 |
| power-analog-board/power-analog-board-001/power-analog-board-001.kicad_sch | 2 | 0 | 2 | 75 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
