Universal_Tester — digital-control-board¶
Source repo: EmbeddedEra/Universal_Tester
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

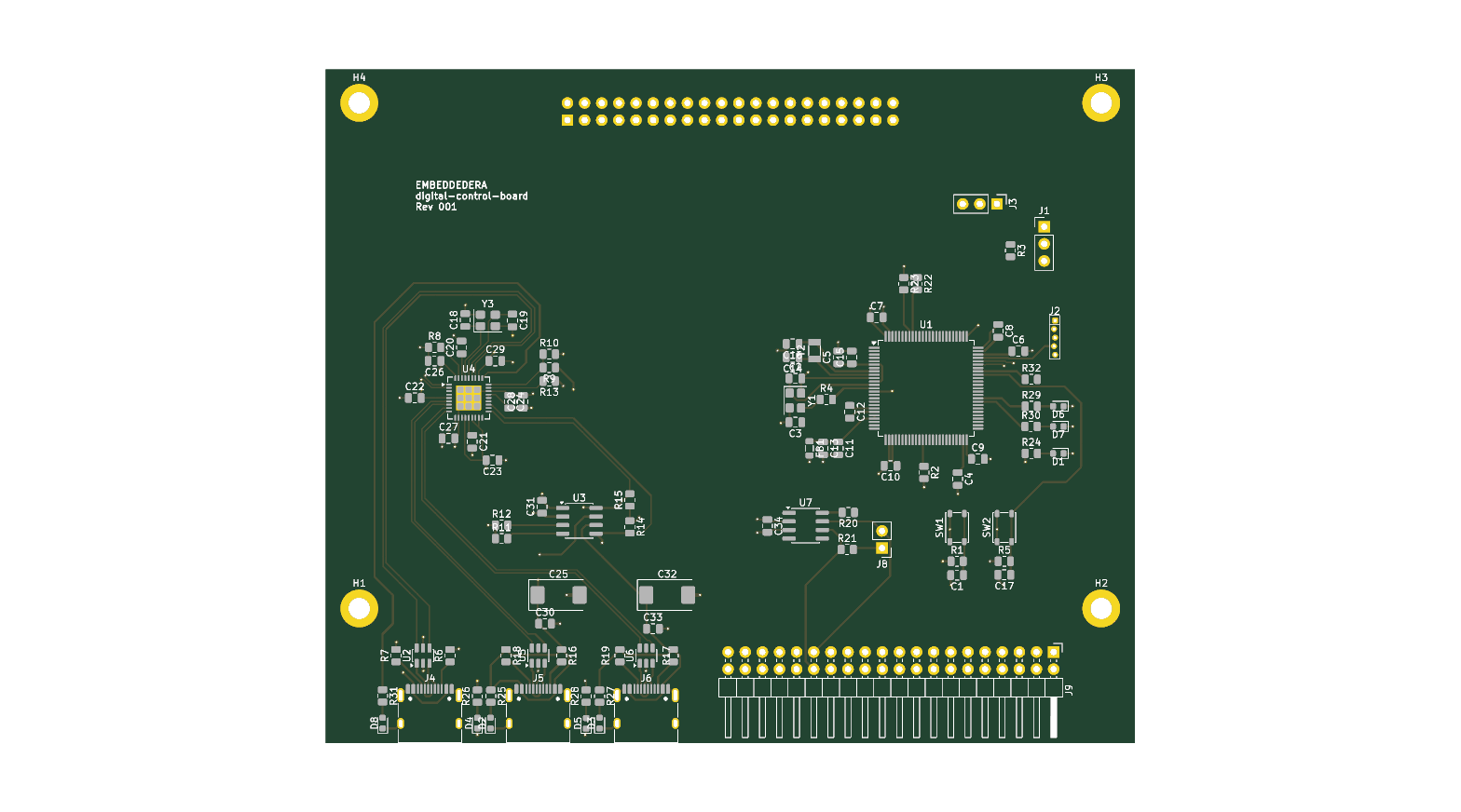

Top

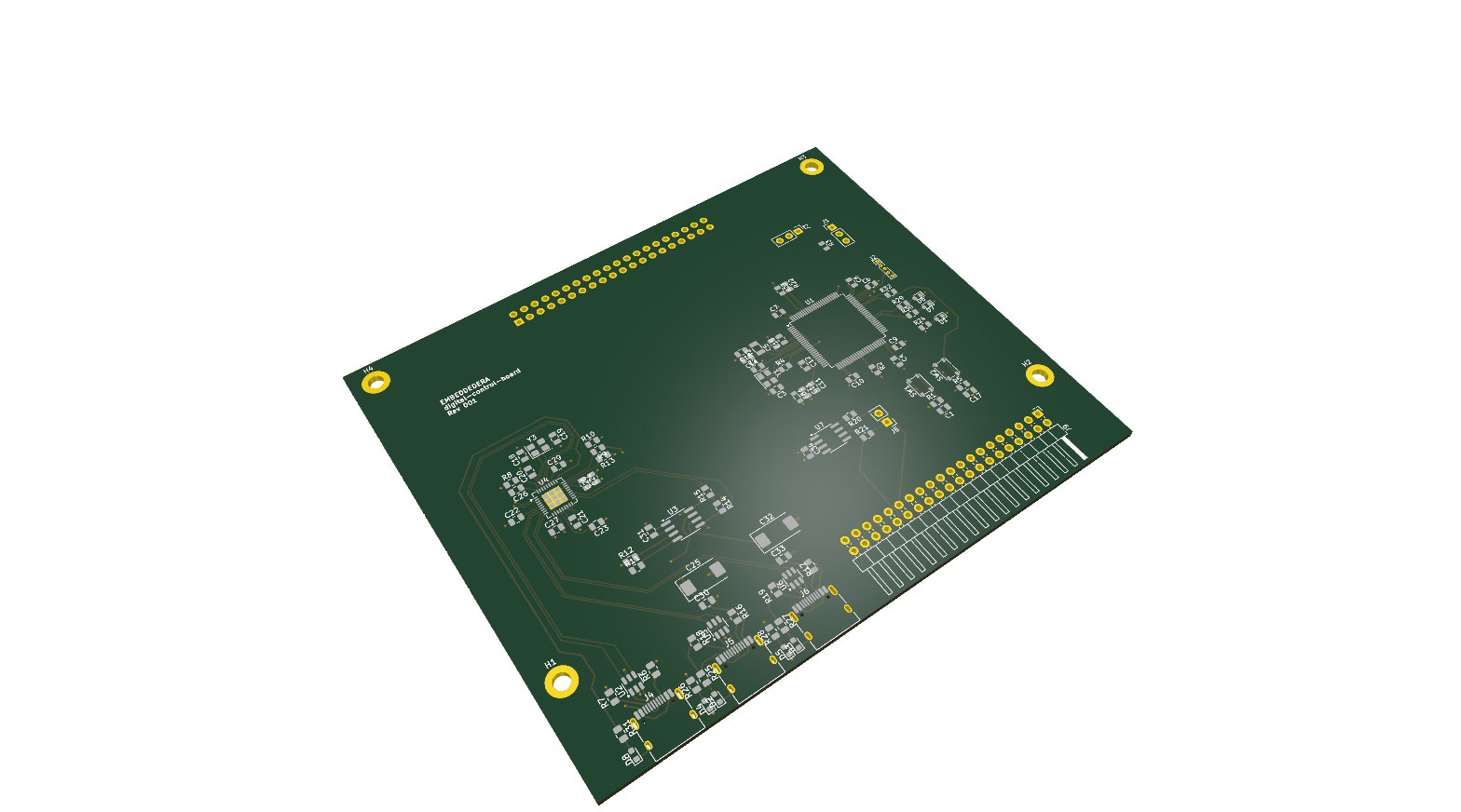

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:25
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| digital-control-board/digital-control-board/Board_Interconnect.kicad_sch | 1 | 17 | 0 | 0 |
| digital-control-board/digital-control-board/Connector_Header.kicad_sch | 3 | 24 | 0 | 0 |
| digital-control-board/digital-control-board/Digital_Comms.kicad_sch | 3 | 2 | 0 | 0 |
| digital-control-board/digital-control-board/MCU_Core.kicad_sch | 3 | 46 | 0 | 0 |
| digital-control-board/digital-control-board/Status_LEDs_Digital.kicad_sch | 4 | 5 | 0 | 0 |
| digital-control-board/digital-control-board/USB_Subsystem.kicad_sch | 4 | 3 | 0 | 0 |
| digital-control-board/digital-control-board/digital-control-board.kicad_sch | 1 | 3 | 0 | 113 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
