Universal_Tester — fixture-board-cow-remote¶
Source repo: EmbeddedEra/Universal_Tester
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶
Top

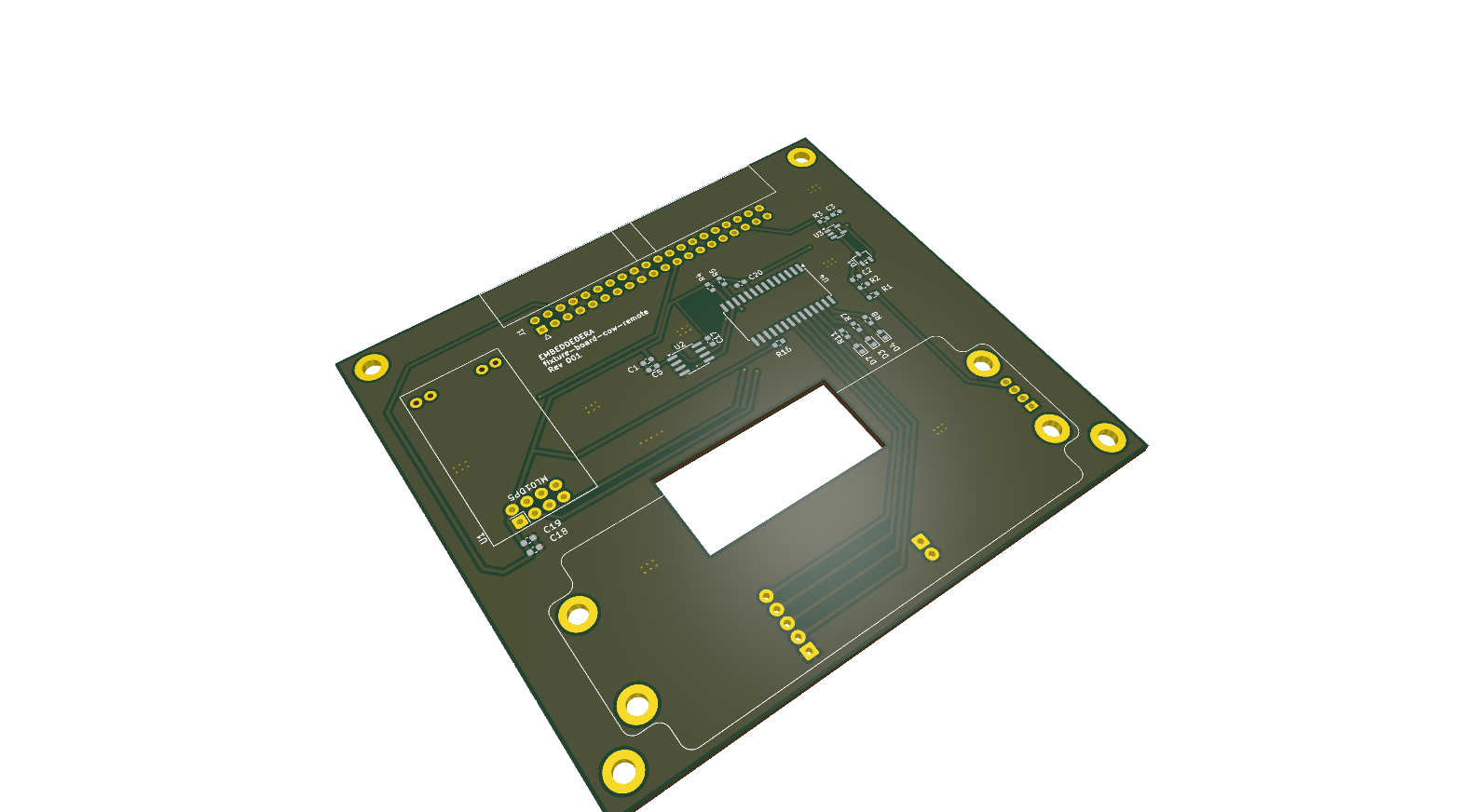

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:25
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| fixture-board-cow-remote/Fixture_ID_EEPROM.kicad_sch | 3 | 2 | 0 | 0 |
| fixture-board-cow-remote/GPIO_Expander.kicad_sch | 3 | 27 | 0 | 0 |
| fixture-board-cow-remote/Golden_RF_Module.kicad_sch | 6 | 5 | 0 | 0 |
| fixture-board-cow-remote/LED_Detection.kicad_sch | 6 | 5 | 0 | 0 |
| fixture-board-cow-remote/Tester_Interconnect.kicad_sch | 0 | 23 | 0 | 0 |
| fixture-board-cow-remote/USB_Passthrough.kicad_sch | 3 | 2 | 0 | 0 |
| fixture-board-cow-remote/UUT_Pogo_Interface.kicad_sch | 1 | 6 | 0 | 0 |
| fixture-board-cow-remote/fixture-board-cow-remote.kicad_sch | 0 | 38 | 2 | 1 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
