Universal_Tester — universal-tester-003¶
Source repo: EmbeddedEra/Universal_Tester
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

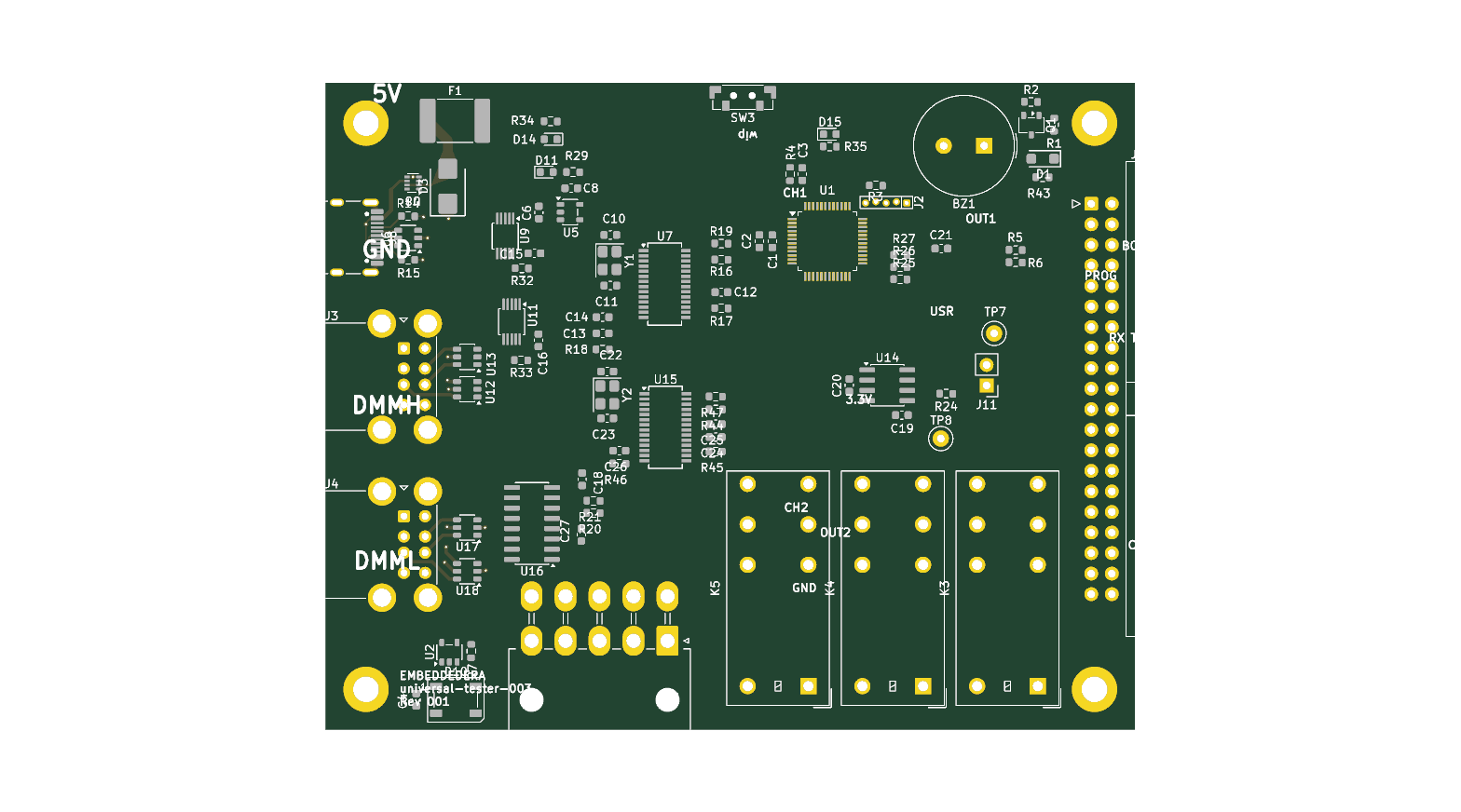

Top

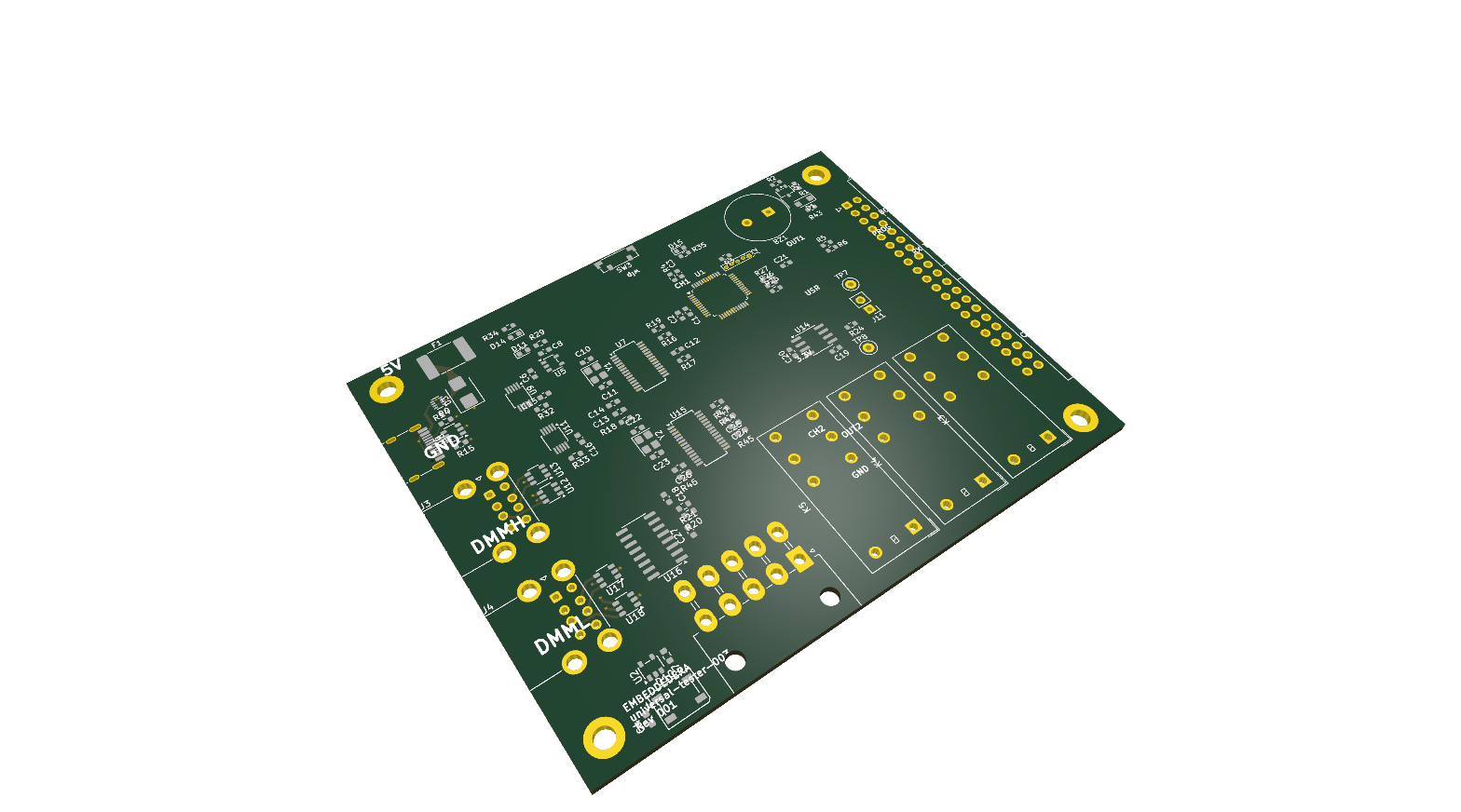

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:25
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| universal-tester-003/CAN_Interface.kicad_sch | 4 | 2 | 0 | 0 |
| universal-tester-003/Fixture_Connector.kicad_sch | 3 | 26 | 0 | 0 |
| universal-tester-003/MCU_Core.kicad_sch | 3 | 34 | 0 | 0 |
| universal-tester-003/Power_System.kicad_sch | 3 | 2 | 0 | 0 |
| universal-tester-003/Relay_Routing.kicad_sch | 2 | 2 | 0 | 0 |
| universal-tester-003/USB_Subsystem.kicad_sch | 3 | 3 | 0 | 0 |
| universal-tester-003/universal-tester-003.kicad_sch | 1 | 1 | 3 | 186 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
