Cricket — cricket¶
Source repo: EmbeddedEra/Cricket
Status: retired · revision 001
Schematic¶
View the real KiCad file directly in the browser via KiCanvas — no export step, no stale PDF.
Board¶
View the real KiCad file directly in the browser via KiCanvas — no export step, no stale PDF.
3D model¶
Drag to rotate, pinch or scroll to zoom, two fingers to pan. Built from the layout with the same 3D models as the renders.
Board in enclosure¶
The board model merged into the FreeCAD enclosure, shell shown semi-transparent so the board is visible inside.
Enclosure files: Cricket008_Enclosure_P11.FCStd
Renders¶
Assembly: both sides (1 parts on top, 43 on the bottom, counted from the layout; fiducials, mounting holes and parts excluded from the BOM are not counted).

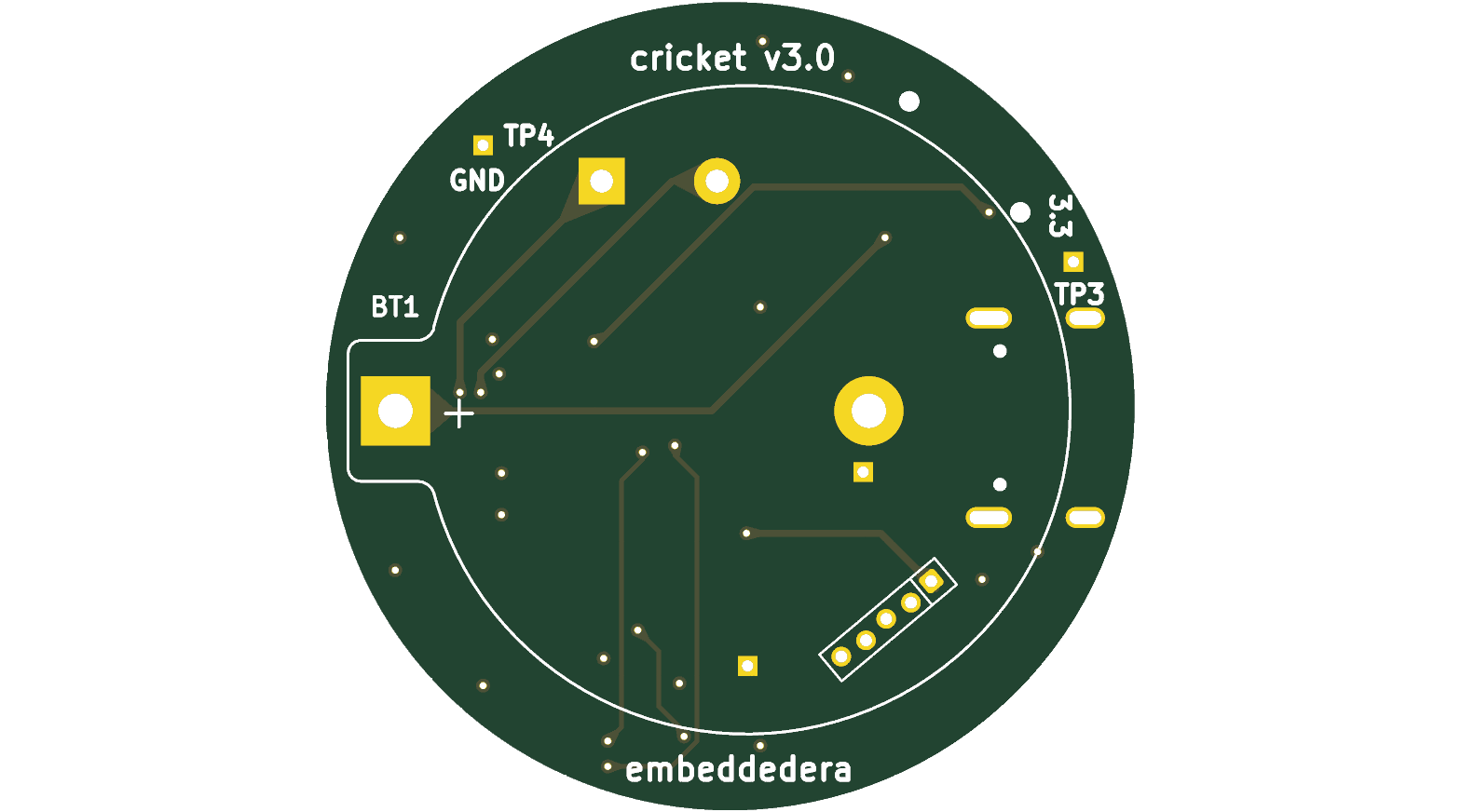

Top
Bottom

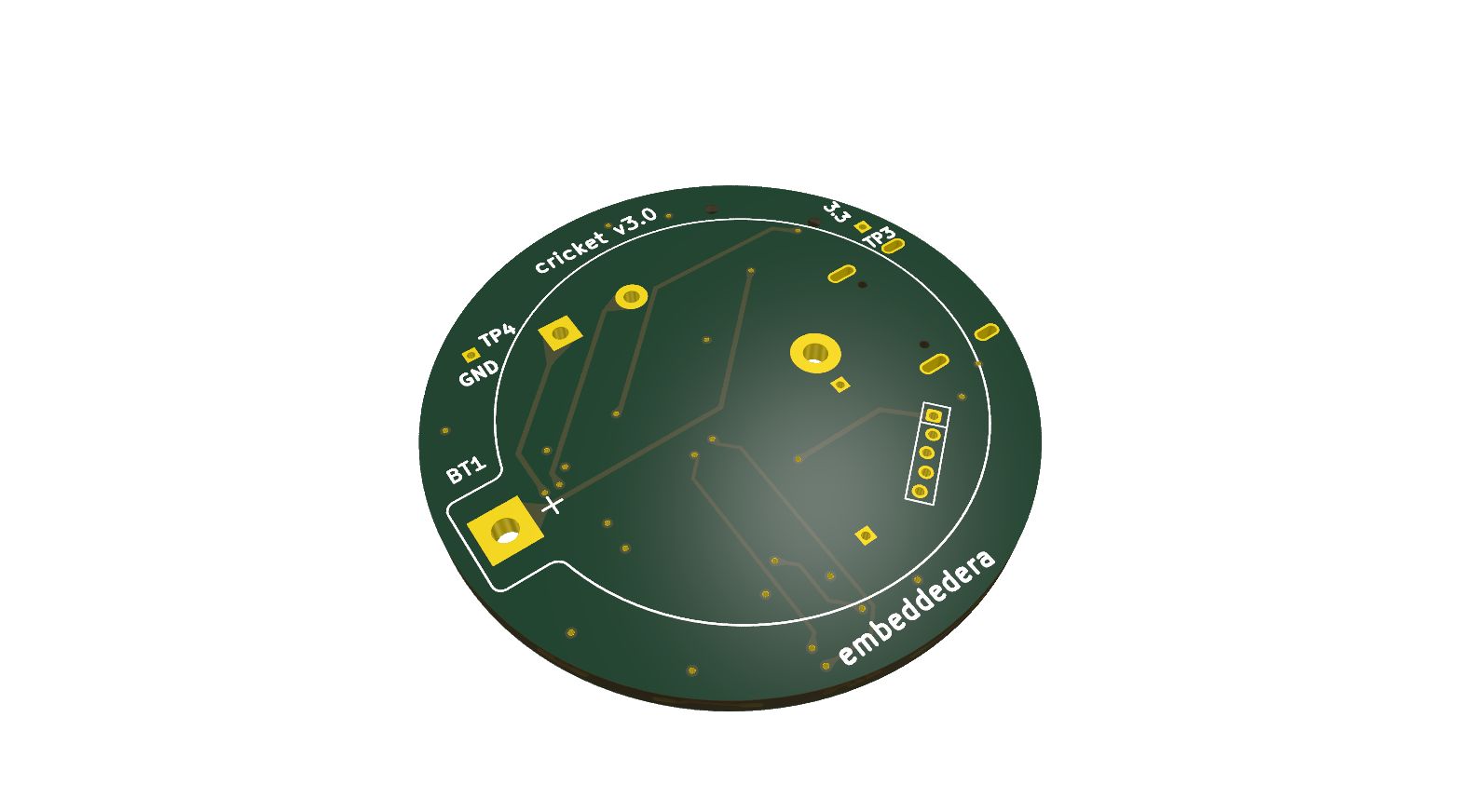

Top isometric
Bottom isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Manufacturing specs¶
No fab.yml yet — see SOP-021 step 12.
Checks¶
Source commit: 26e635920f65aeb8e8e29b4920c9353fe49a70e3
Last run: 2026-10-31 18:21 on 26e635920f65aeb8e8e29b4920c9353fe49a70e3 — cached run, hardware and checker unchanged
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| archive/PCB/Rev001/cricket/cricket.kicad_sch | 1 | 2 | 0 | 2 |
CI ("KiCad checks") unknown for 26e635920f65aeb8e8e29b4920c9353fe49a70e3: no "KiCad checks" run on this commit.
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
