Boost_Gauge — Boost_Gauge_001¶
Source repo: EmbeddedEra/Boost_Gauge
Schematic¶
View the real KiCad file directly in the browser via KiCanvas — no export step, no stale PDF.
Board¶
View the real KiCad file directly in the browser via KiCanvas — no export step, no stale PDF.
3D model¶
Drag to rotate, pinch or scroll to zoom, two fingers to pan. Built from the layout with the same 3D models as the renders.
Renders¶
Assembly: both sides (18 parts on top, 29 on the bottom, counted from the layout; fiducials, mounting holes and parts excluded from the BOM are not counted).

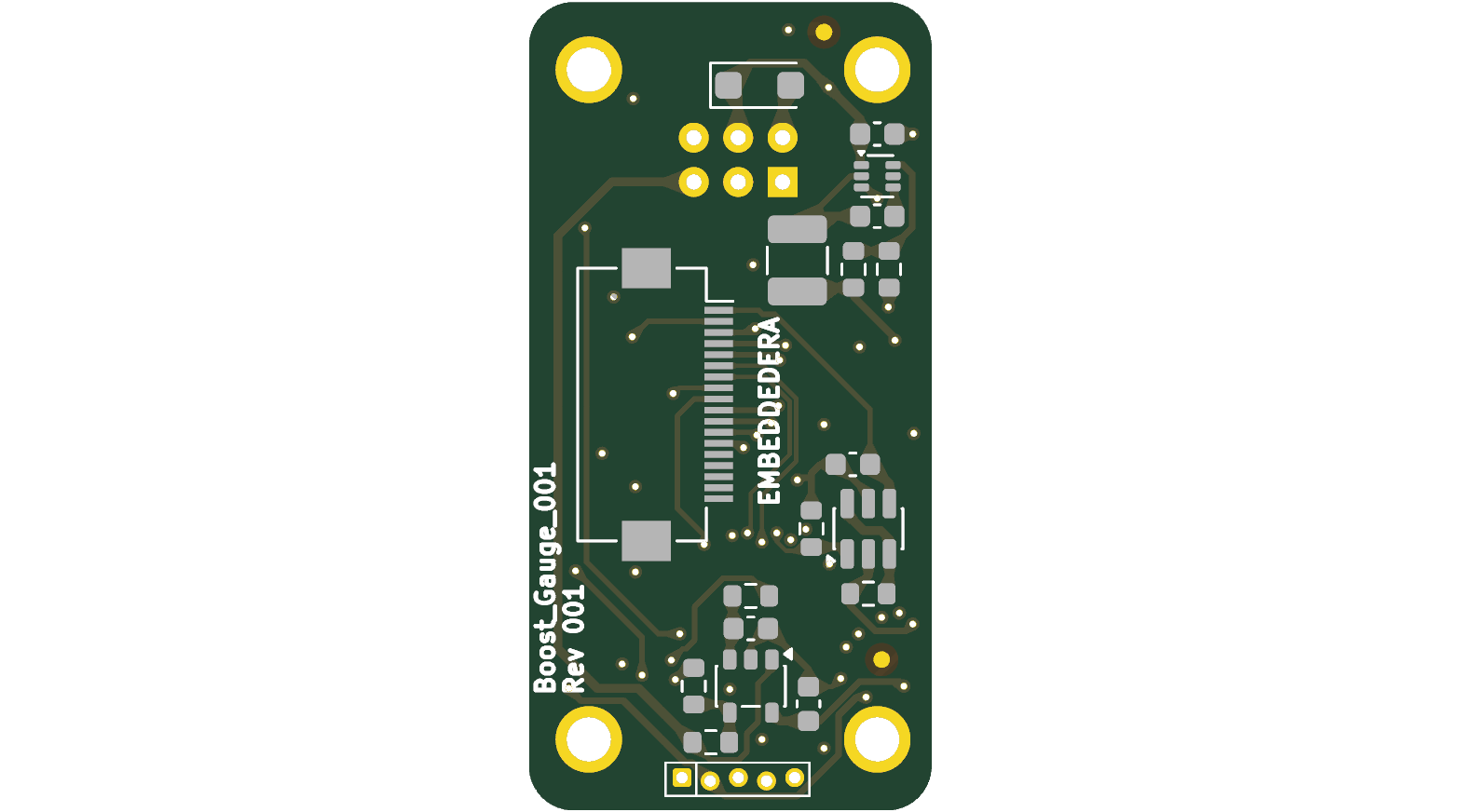

Top
Bottom

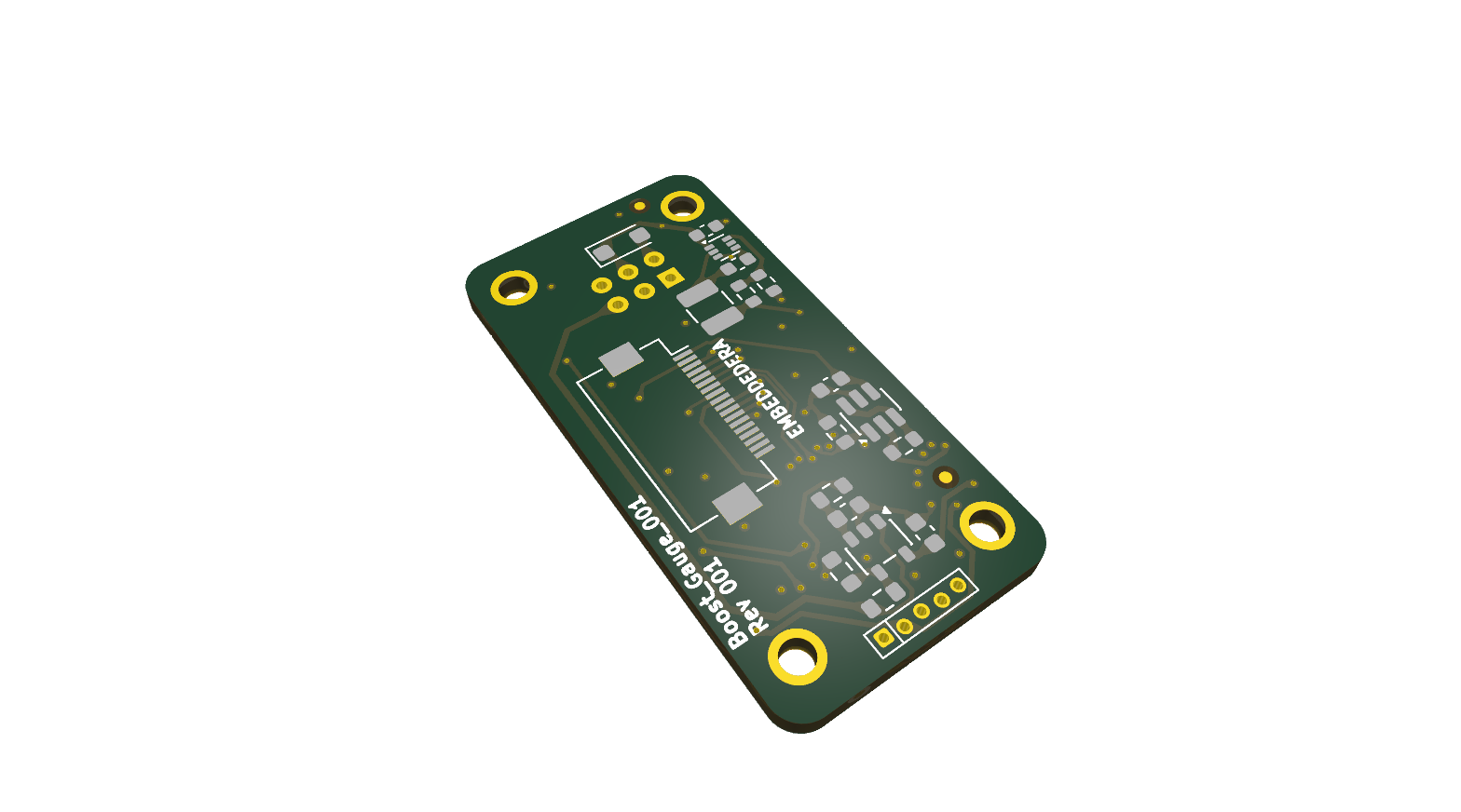

Top isometric
Bottom isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Manufacturing specs¶
No fab.yml yet — see SOP-021 step 12.
Checks¶
Source commit: 89c500746f3e2c29a780fd3107d1da8c588bd726
Last run: 2026-10-31 18:22 on 89c500746f3e2c29a780fd3107d1da8c588bd726 — cached run, hardware and checker unchanged
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| Harware/Boost_Gauge_001/Boost_Gauge_001.kicad_sch | 5 | 8 | 0 | 0 |
CI ("KiCad checks") unknown for 89c500746f3e2c29a780fd3107d1da8c588bd726: the repo has no "KiCad checks" workflow.
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
