Universal_Tester — universal-tester-002¶
Source repo: EmbeddedEra/Universal_Tester
Schematic¶
View the real KiCad file directly in the browser via KiCanvas — no export step, no stale PDF.
Board¶
View the real KiCad file directly in the browser via KiCanvas — no export step, no stale PDF.
3D model¶
Drag to rotate, pinch or scroll to zoom, two fingers to pan. Built from the layout with the same 3D models as the renders.
Board in enclosure¶
The board model merged into the FreeCAD enclosure, shell shown semi-transparent so the board is visible inside.
Enclosure files: Universal_tester_002_enclosure.FCStd, Universal_tester_002_enclosure-PartBody006.stl, Universal_tester_002_enclosure-PartBody003.stl, Universal_tester_002_enclosure button.stl, Universal_tester_002_enclosure-PartBody.stl, Universal_tester_002_enclosure-PartBody005.stl, Universal_tester_002_enclosurepins.stl, Universal_tester_002_enclosure-PartBody001.stl, Universal_tester_002_enclosure-PartBody.3mf
Renders¶
Assembly: top only (110 parts on top, 0 on the bottom, counted from the layout; fiducials, mounting holes and parts excluded from the BOM are not counted).

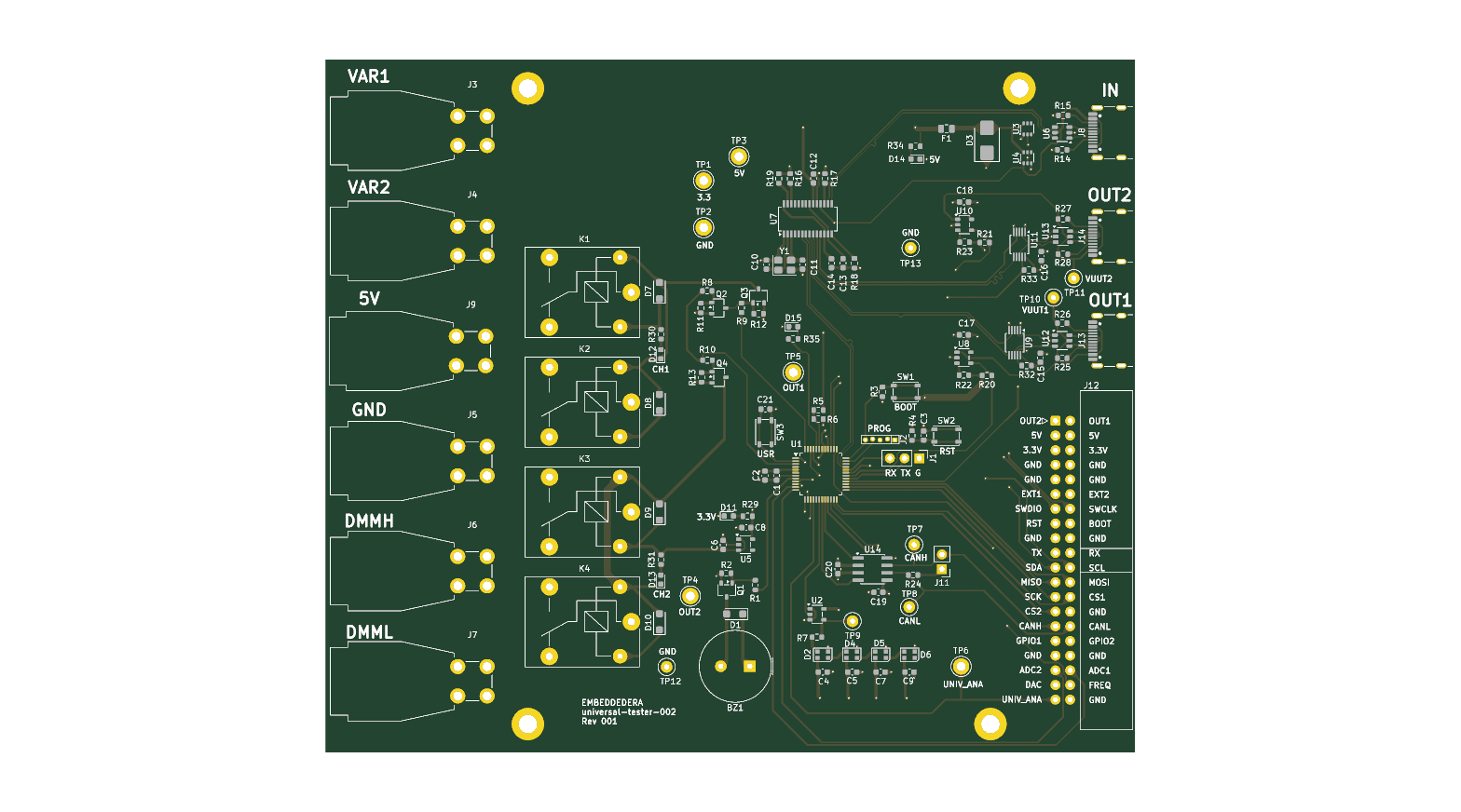

Top
Bottom

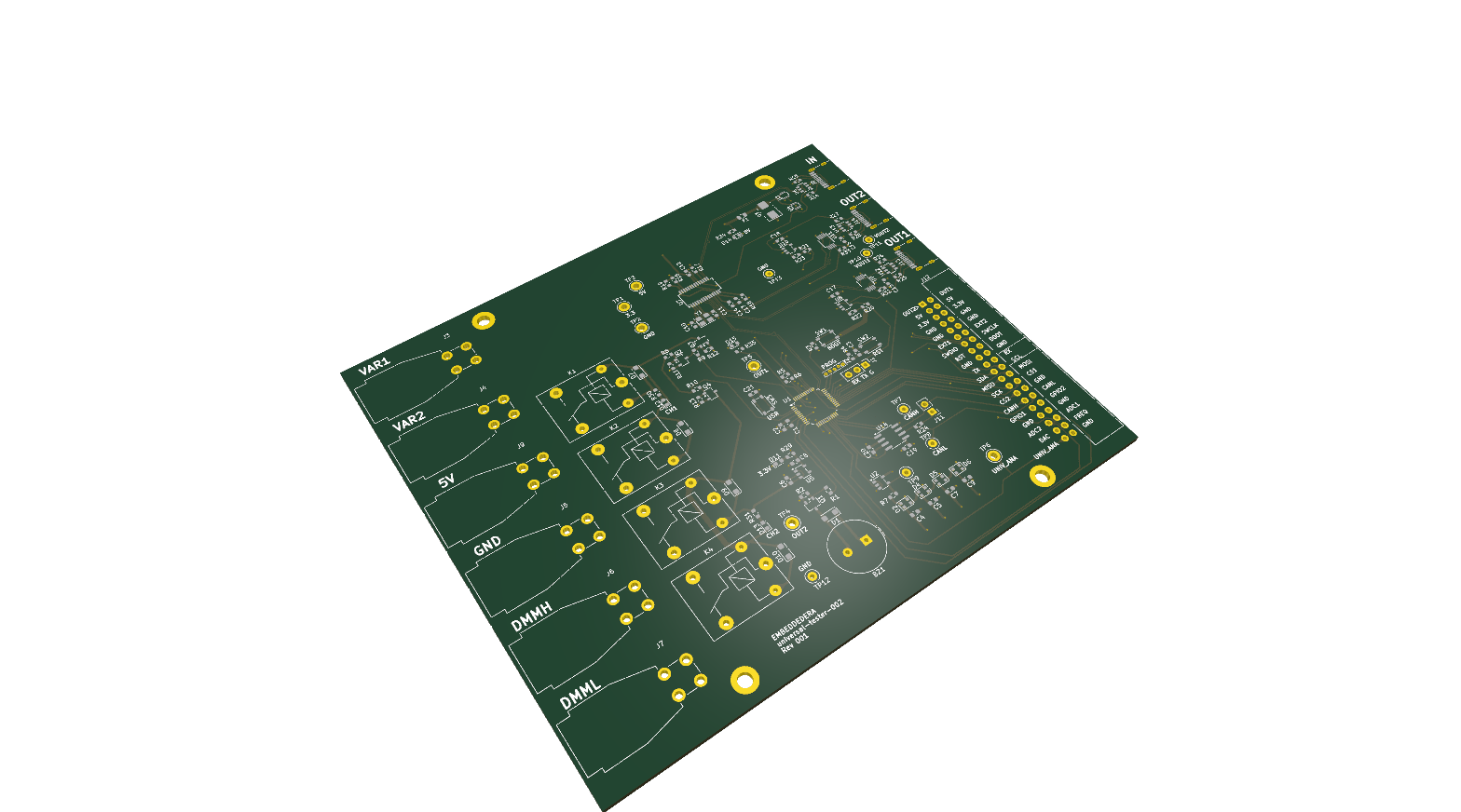

Top isometric
Bottom isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Manufacturing specs¶
No fab.yml yet — see SOP-021 step 12.
Checks¶
Source commit: 83f74edb2ac808d8138011ecfbeafdd1db44209b
Last run: 2026-10-31 18:23 on 83f74edb2ac808d8138011ecfbeafdd1db44209b — cached run, hardware and checker unchanged
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| universal-tester-002/universal-tester-002.kicad_sch | 2 | 0 | 0 | 0 |
CI ("KiCad checks") unknown for 83f74edb2ac808d8138011ecfbeafdd1db44209b: the repo has no "KiCad checks" workflow.
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
