Boost_Gauge — Boost_Gauge_002¶
Source repo: EmbeddedEra/Boost_Gauge
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

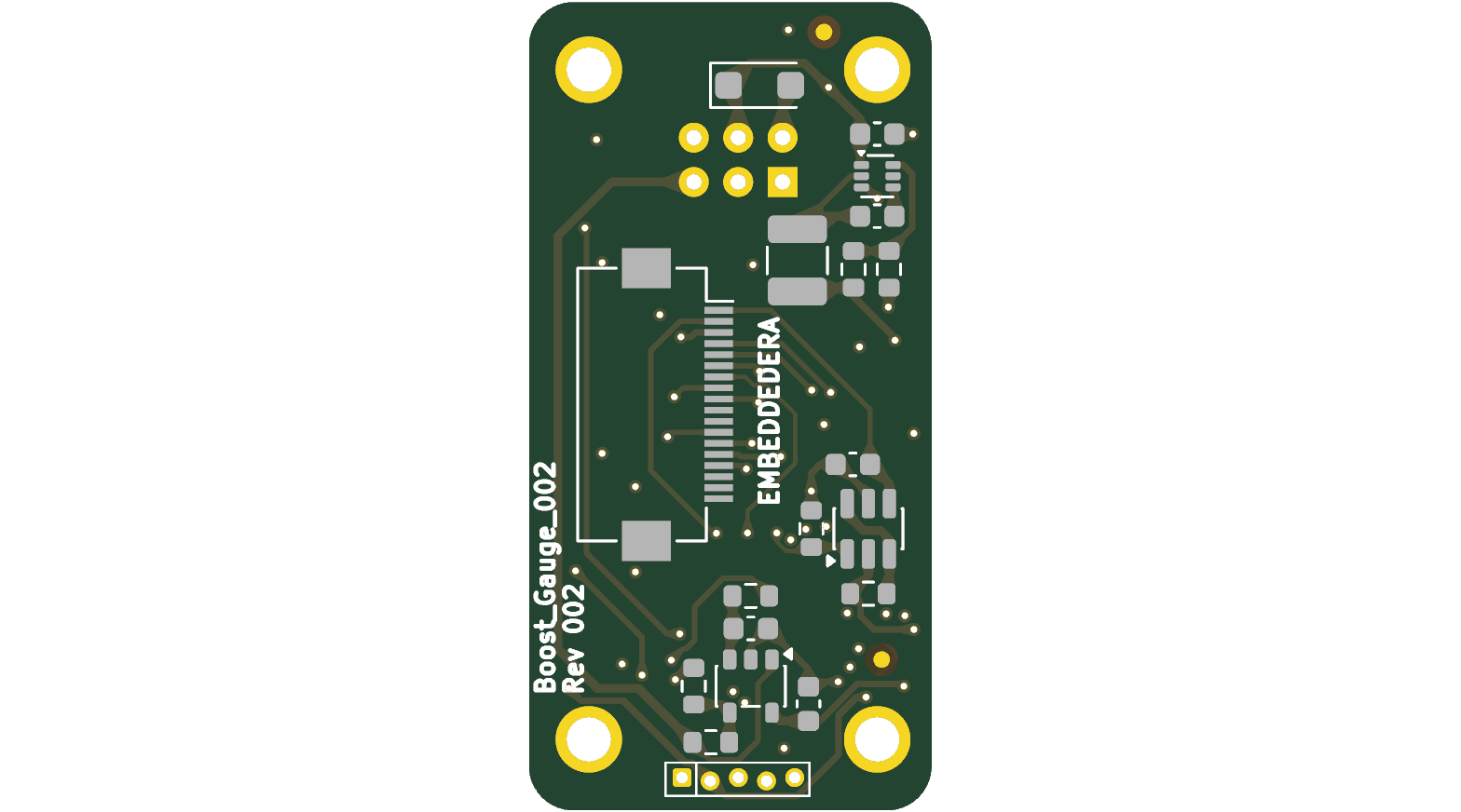

Top

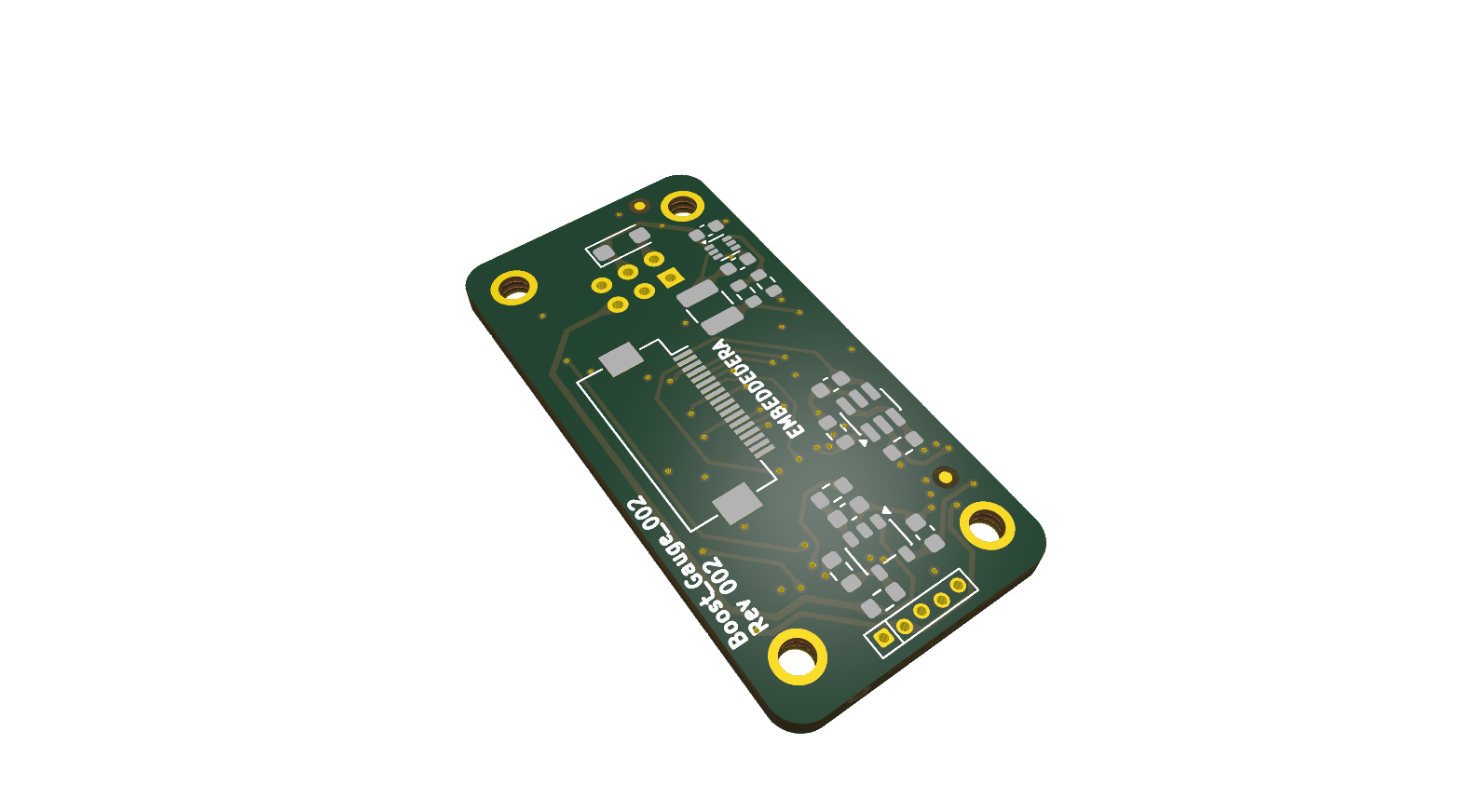

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:27
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| Harware/Boost_Gauge_002/Boost_Gauge_002.kicad_sch | 5 | 7 | 0 | 0 |
| Harware/Boost_Gauge_002/Boost_Sensor.kicad_sch | 3 | 0 | 0 | 0 |
| Harware/Boost_Gauge_002/Connector.kicad_sch | 3 | 4 | 0 | 0 |
| Harware/Boost_Gauge_002/LCD.kicad_sch | 0 | 0 | 0 | 0 |
| Harware/Boost_Gauge_002/Regulators.kicad_sch | 0 | 0 | 0 | 0 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
