PSU —¶
Source repo: EmbeddedEra/PSU
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

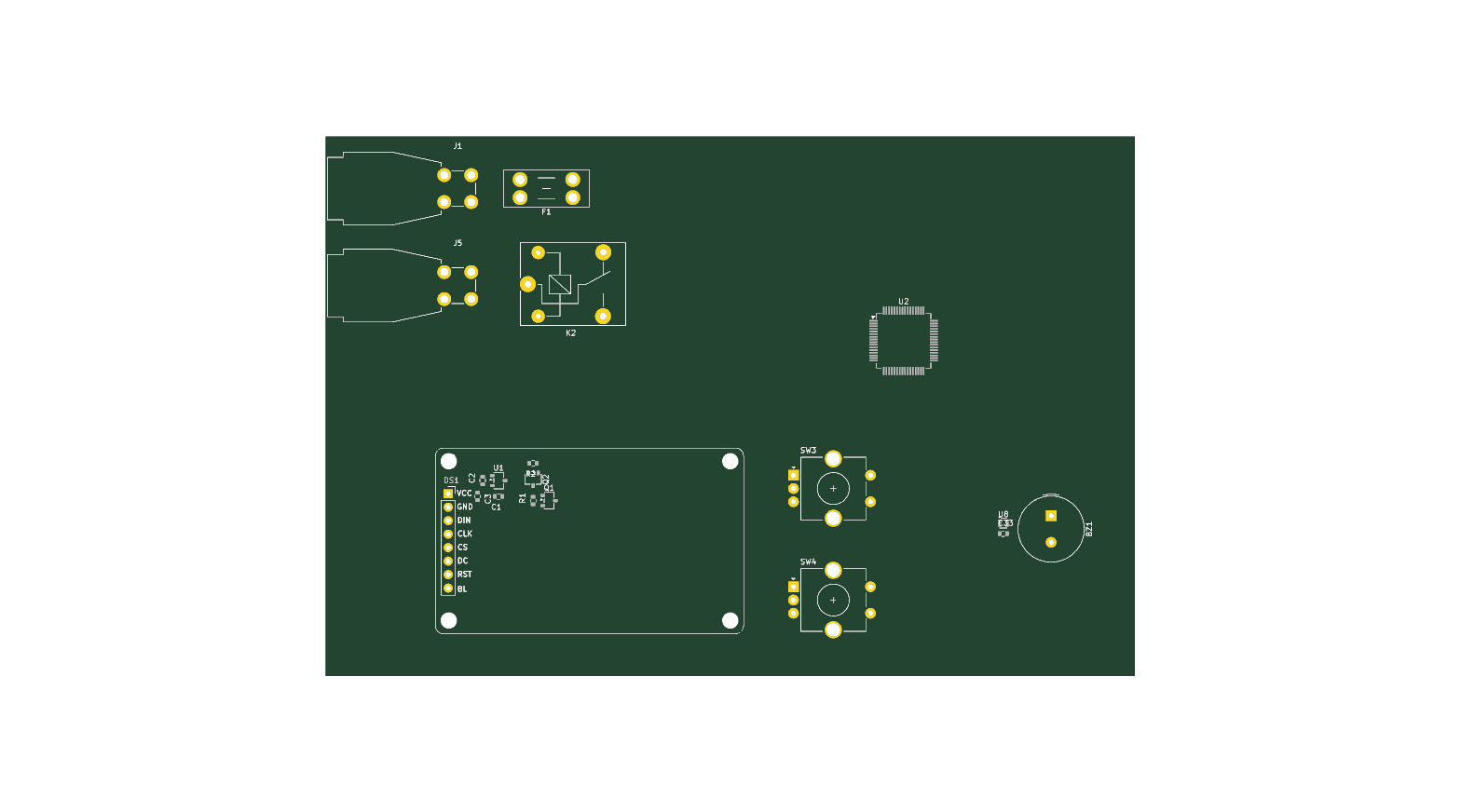

Top

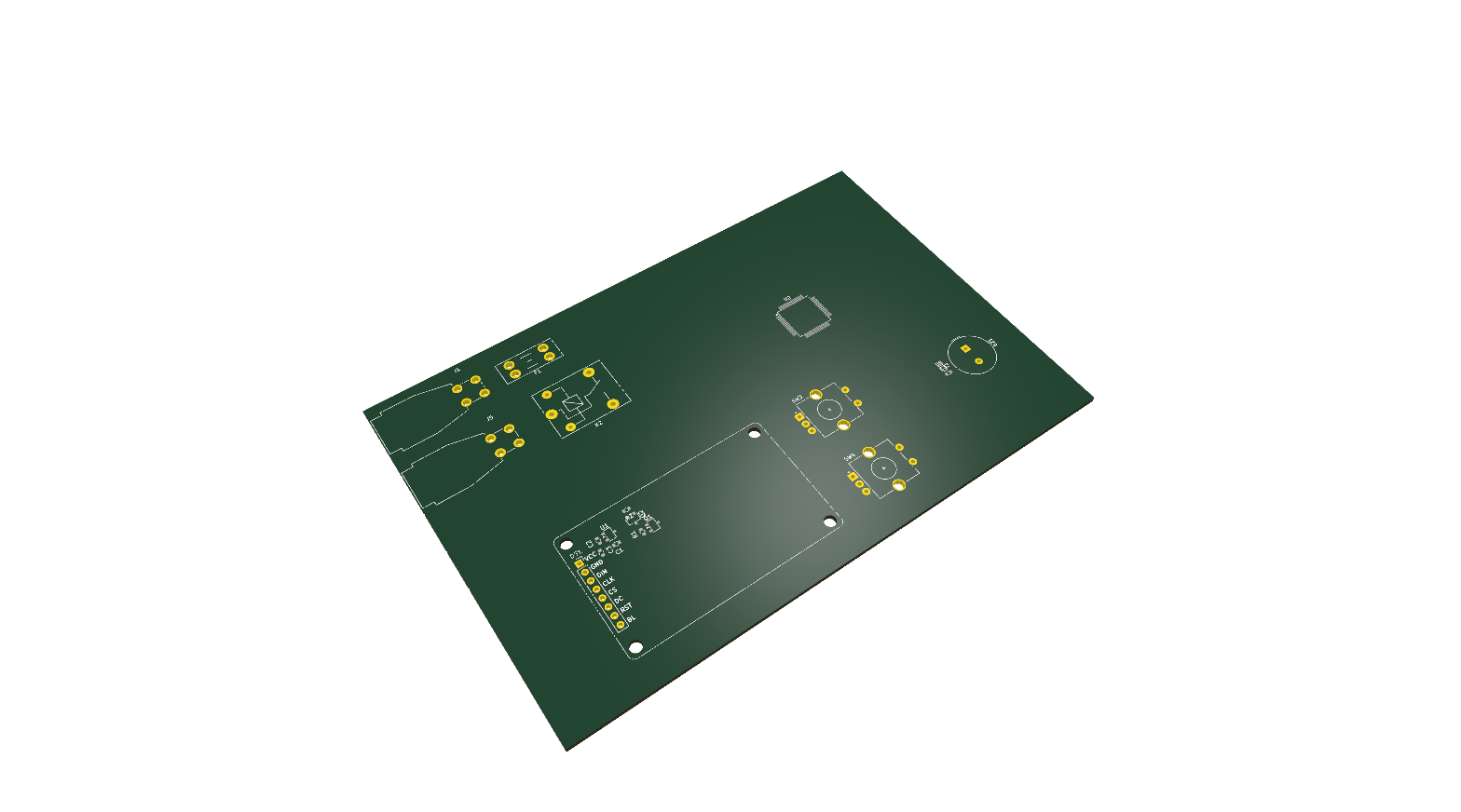

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:28
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| ANALOG_BUFFER.kicad_sch | 4 | 2 | 0 | 0 |
| BUCK_CHARGER.kicad_sch | 5 | 0 | 0 | 0 |
| BUTTON.kicad_sch | 3 | 0 | 0 | 0 |
| Buck-Boost.kicad_sch | 16 | 3 | 0 | 0 |
| Buck5V.kicad_sch | 0 | 0 | 0 | 0 |
| Charger.kicad_sch | 0 | 0 | 0 | 0 |
| ENCODER.kicad_sch | 0 | 0 | 0 | 0 |
| LCD.kicad_sch | 0 | 0 | 0 | 0 |
| MCU.kicad_sch | 0 | 0 | 0 | 0 |
| PIEZO.kicad_sch | 0 | 0 | 0 | 0 |
| PSU.kicad_sch | 0 | 0 | 0 | 0 |
| SOFT_SWITCH.kicad_sch | 0 | 0 | 0 | 0 |
| Sense.kicad_sch | 0 | 0 | 0 | 0 |
| Shunt.kicad_sch | 0 | 0 | 0 | 0 |
| USB.kicad_sch | 0 | 0 | 0 | 0 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
