Cricket — Cricket 005 (cricket)¶
Source repo: EmbeddedEra/Cricket
Schematic and board¶
View the real KiCad files directly in the browser via KiCanvas — no export step, no stale PDF.
Renders¶

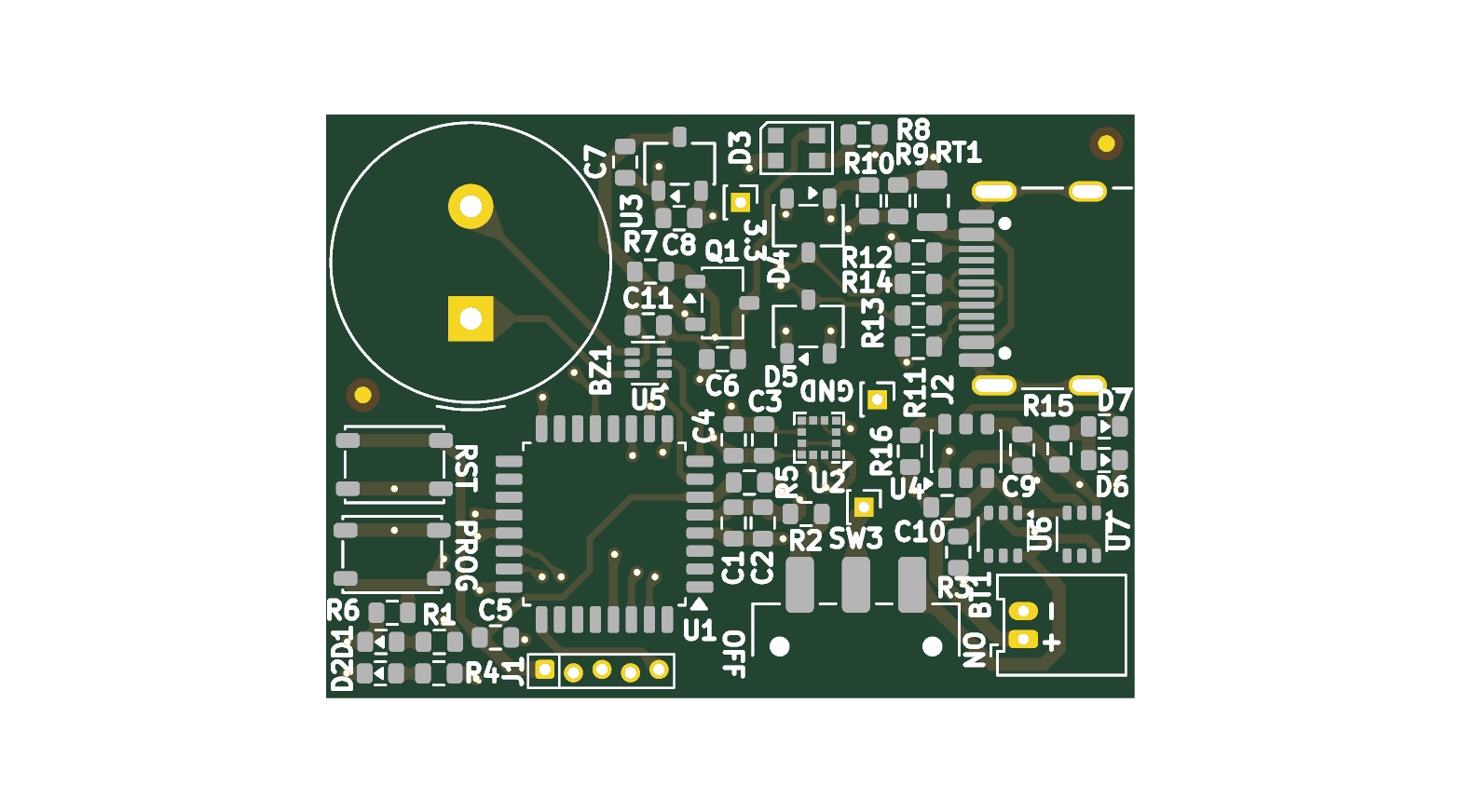

Top

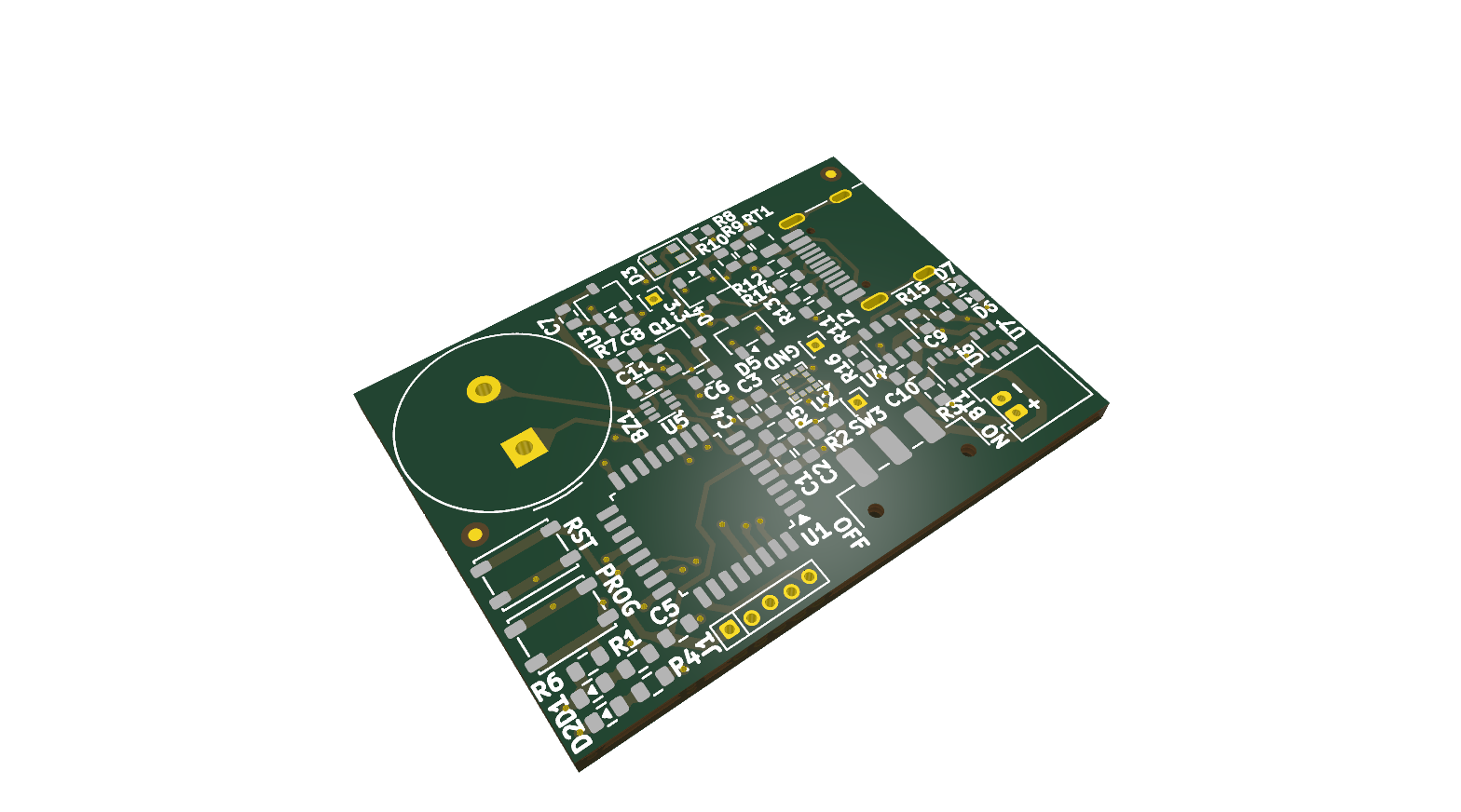

Isometric
InteractiveHtmlBom¶
The InteractiveHtmlBom — for the bench: click a BOM line and the part highlights on the board.
Checks¶
Last run: 2026-09-15 23:26
| File | ERC errors | ERC warnings | DRC errors | DRC warnings |
|---|---|---|---|---|
| PCB/Cricket 005/Cricket 005.kicad_sch | 3 | 5 | 4 | 4 |
| PCB/Cricket 005/cricket.kicad_sch | 3 | 8 | 10 | 10 |
| PCB/Cricket 005/power.kicad_sch | 2 | 8 | 0 | 0 |
No CI on this repo (no "KiCad checks" workflow run found).
Releases¶
No hw/ releases yet.
ERP¶
No product.yml IPN recorded for this board.
